Pages
As seen above, the synth has three pages: "Main," "Mods," and "Effects." The Main page contains the main controls for sound generation. The Mods page contains controls for configurable modulation sources like LFOs and MSEGs. The Effects page contains the built-in effects arranged in one or two chains.

Main Page

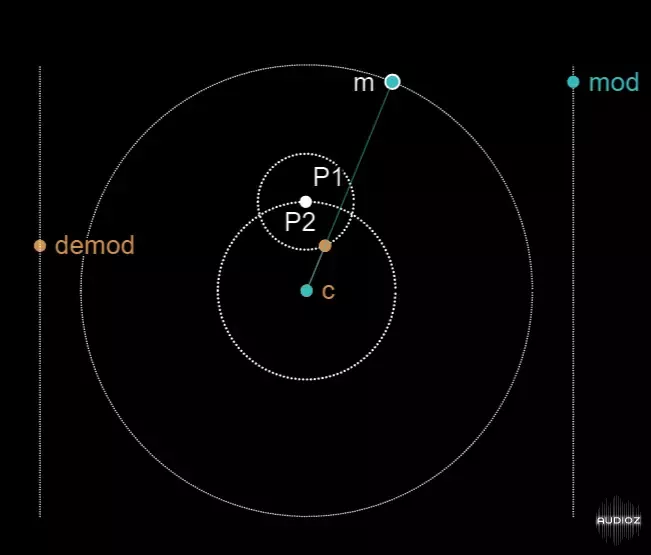

The four revolving bodies are controlled by the four panes of the OSC section. The radii of their orbits can be modulated by any of the four envelopes to the right. Their relative speeds can be adjusted with the "Coarse" and "Fine" controls, or an absolute frequency can be set with the "Fixed" control. Normally (when the wave is set to "Sine"), the motion of the body is uniform and circular. In this mode, adjusting the relative starting points of the various oscillations (with the "Phase" control) can change the sound a lot. When a different wave is selected, the sound is richer and individual phase differences matter less.

In the Timbre section, you can modify the position of the equant and the mix of modulated and demodulated signal. Since the size of all the orbits is variable, a planet or planets may pass very close to the equant, or even through it, resulting in sharp corners and/or discontinuities (and some aliasing, less in v1.2). This could (and can) be avoided by making the outer orbits smaller, but that also reduces their contribution to the overall sound. Finally, the "Algorithm" control switches between different arrangements of the oscillators, with different "terminal" bodies. In many cases, the first algorithm (1-2-3-4) is the harshest, and the last the least harsh (since the modulation is less compounded), but the effects vary depending on the relative sizes of the orbits and other factors, so it's worth trying out different algorithm settings as you're trying to dial in a sound. There's also a dedicated filter, with cutoff, resonance, and key tracking controls, and a variety of common filter types. There's also an auxiliary oscillator, for the sake of layering.

Almost every control on the main page can by modulated differently for each individual voice ("poly") or the same for all ("mono"). A quick aside about that:

On all three pages, the "Mod Sources" and "Mod Matrix" panels appear. Click on any of the icons to the right of modulation sources to select them for assignment to one or more controls, which can be done by clicking and dragging on any knob. Modulation sources and destinations will appear in the mod matrix, which offers further controls for different modulation curves and amounts and for selecting between unipolar or bipolar modulation. Note that many modulation destinations, and all effects controls, can only be modulated "mono."
Mods Page
The "Mods" page contains the controls for the LFOs and MSEGs, as well as a few others. In the headers of most mod source panels (ENVs, LFOs, MSEGs), there are controls to create connections, either by direct selection, or by putting the synth in "Learning" mode, where clicking and dragging controls applies modulation. There are also some overall controls for the synth in "Global." Finally, the "Macros" panels allows modulation of several parameters at once by one knob, which can be assigned to respond to a MIDI CC message. Just click "Learn" beneath the knob, and then activate the control you want to assign to it on your MIDI controller. A CC number will appear below the knob to indicate the assignment was successful. Click on the "Clear" button below it to remove the assignment.

Effects Page
The "Effects" page contains slots for up to eight built-in effects, arranged in one or two chains ("A -> B" or "A || B"), each with its own gain control, applied before the signal enters the chain. Ordering the effects chains differently can open up a lot of possibilities. Since the effects parameters can be modulation destinations, there's a mod sources panel on this page, too, as well as a modulation matrix panel, showing the currently active modulations, and offering controls to bypass, adjust, or delete them. In combination, the effects on this page can add a lot of boost, especially when modulated with sources that can constructively interfere. A built-in limiter is accordingly always on and meant to keep the levels below 0 dB, but be careful nonetheless.

Presets
Presets can be viewed either as a flat list, by clicking on the current preset name, or in a browser that divides them by author and category, by clicking on the folder icon to the left of the current preset name. In case you want to install any manually, on Windows, the folder location should be %HOMEPATH%\AppData\Roaming\com.void-star\Audible Planets\programs. On Mac OS, it should be ~/Library/Application Support/com.void-star/Audible Planets/programs. On Linux, it should be ~/.config/com.void-star/Audible Planets/programs. In any case, you can right-click on any preset name in the browser pane and select the option to show the file location. Also, if you come up with any patches you'd like to share, please feel free to make a pull request on that repo or just message me here on Github.
